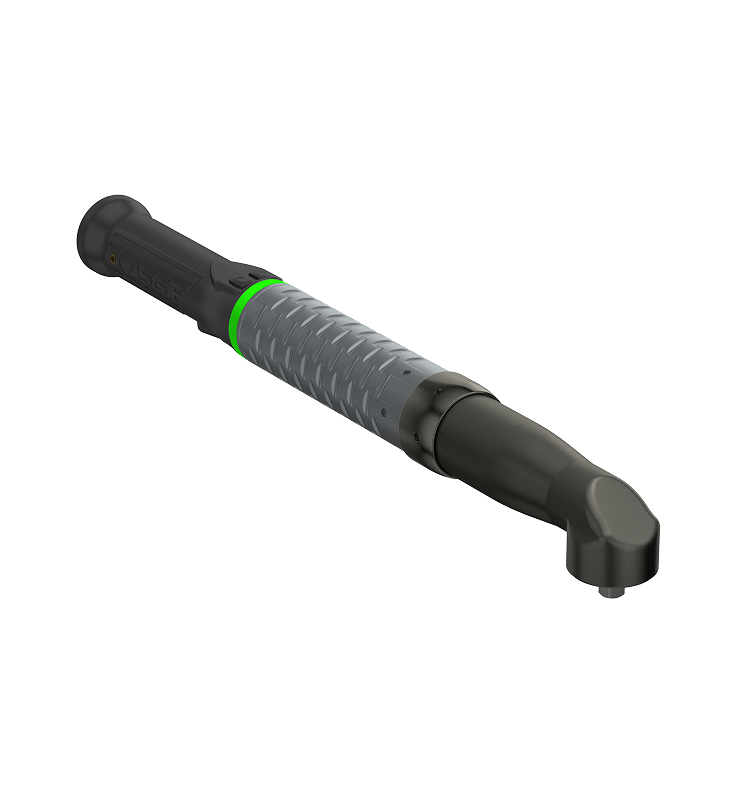

Proudly designed and assembled in the USAASG-SD4500-60RP
Transducerized Electric Angle Nutrunner
The ASG-SD4500-60RP is a powerful brushless transducerized DC electric torque and angle control nutrunner delivering precise torque and angle control up to 44.2 lbf.ft (60 N.m). The ASG-SD4500-60RP is engineered for extreme precision, accuracy, quality and quality. It is designed with operator safety in mind as the textured ergonomic body supports user comfort and control. The ASG-SD4500-60RP comes with 3/8″ square pin detent standard; ball detent or through pinhole available upon request.
Specifications: Series: SD4500
ESD Safe?: No
Driver Type: Angle (90°)
Operation: Lever Start
Torque: 8.8 – 44.2 lbf-ft / 12 - 60.0 Nm
Max rpm: 750 rpm
Drive Size: 3/8" square pin detent standard; ball detent or through pinhole available upon request
Standard or Brushless?: Brushless
CE Certified?: Pending
Data Recording?: Yes
Warranty: 1 Year or 1,000,000 cycles
Controller: ASG-CT4500
Request Info
Download Spec Sheet
ESD Safe?: No
Driver Type: Angle (90°)
Operation: Lever Start
Torque: 8.8 – 44.2 lbf-ft / 12 - 60.0 Nm
Max rpm: 750 rpm
Drive Size: 3/8" square pin detent standard; ball detent or through pinhole available upon request
Standard or Brushless?: Brushless
CE Certified?: Pending
Data Recording?: Yes
Warranty: 1 Year or 1,000,000 cycles
Controller: ASG-CT4500
