Precision Fastening

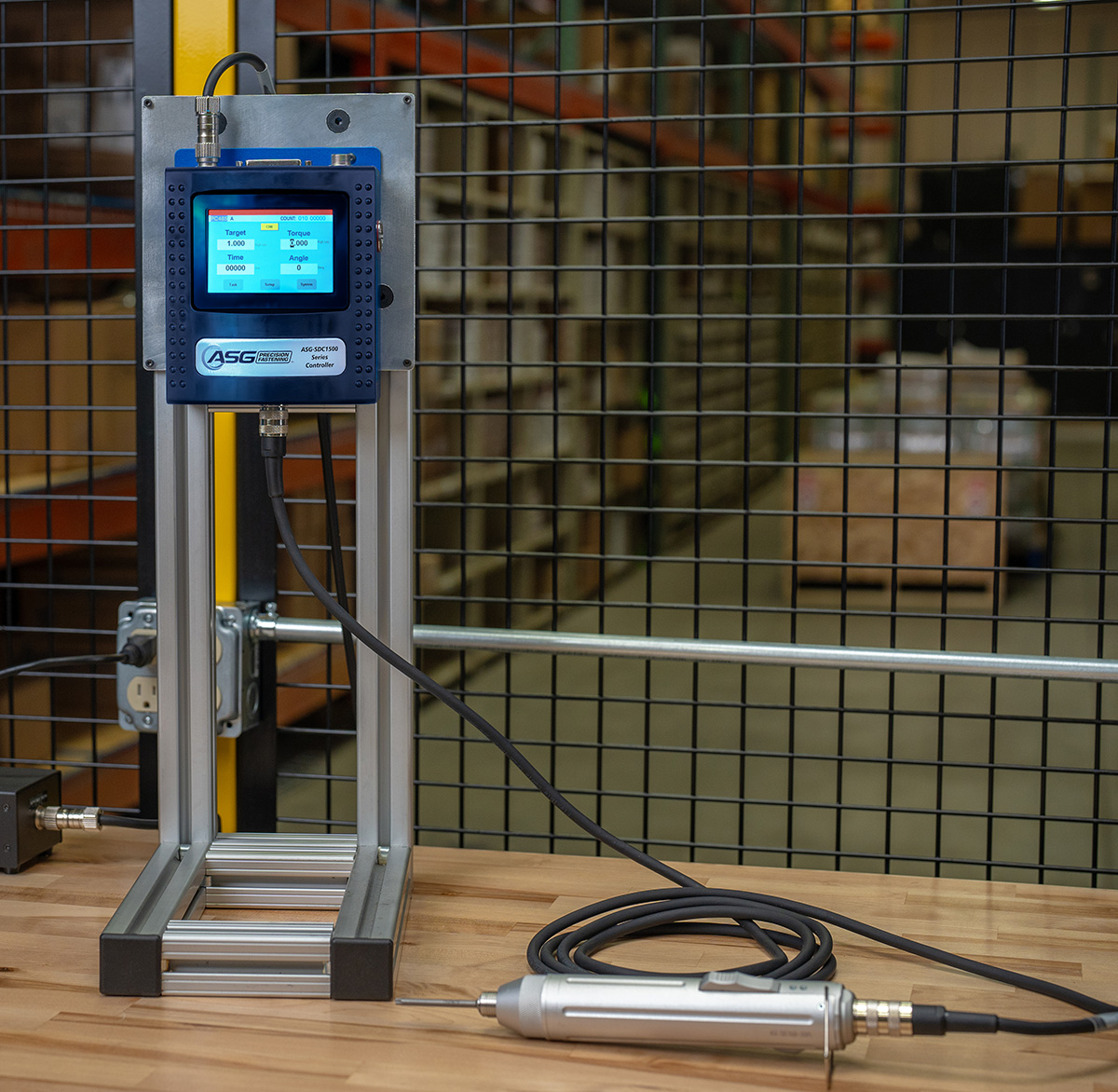

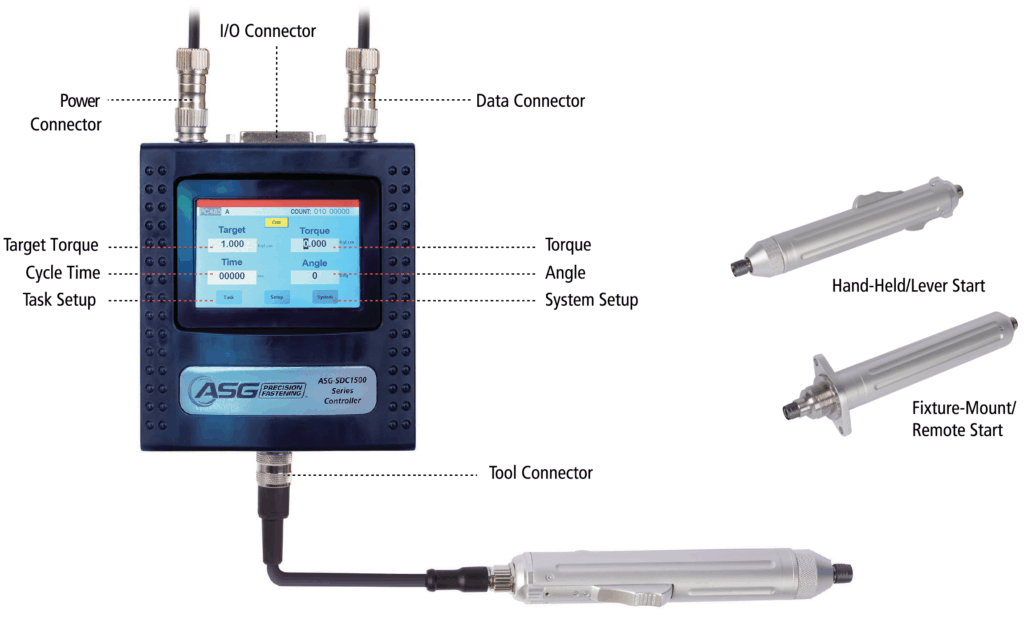

Current Control System SDC1500

Smart Current Control Tool System for extremely low torque and repeatable accuracy.

For torque applications between 0.01 and 3.00 N.m (0.13-26.0 lbf.in)

  • Up to 6 steps for one fastening process
  • Torque, angle control, and time monitoring with color coded results
  • I/O communication with 8 inputs and 10 outputs
  • Control and communication ability via RS232, RS485 and Modbus
  • 300,000 cycles of data storage and real-time graphing output
  • Touch screen setup with password protection
  • Available with handheld or fixture mount screwdrivers.
